ULTEM®
ULTEM®, also known as PEI or its full chemical name Polyetherimide is an amorphous plastic that falls into the high performace materials range. ULTEM® can be recognized by its color which is a transparent amber. ULTEM® medical grades are available and include FDA, USP Class VI versions. It is a good choice over polysulfone in applications that require higher strength, stiffness, or temperature resistance.
ULTEM® 1000 is an unfilled PEI and ULTEM® 2300 is reinforced with glass fibers for additional stiffness, tensile strength and dimensional stability.

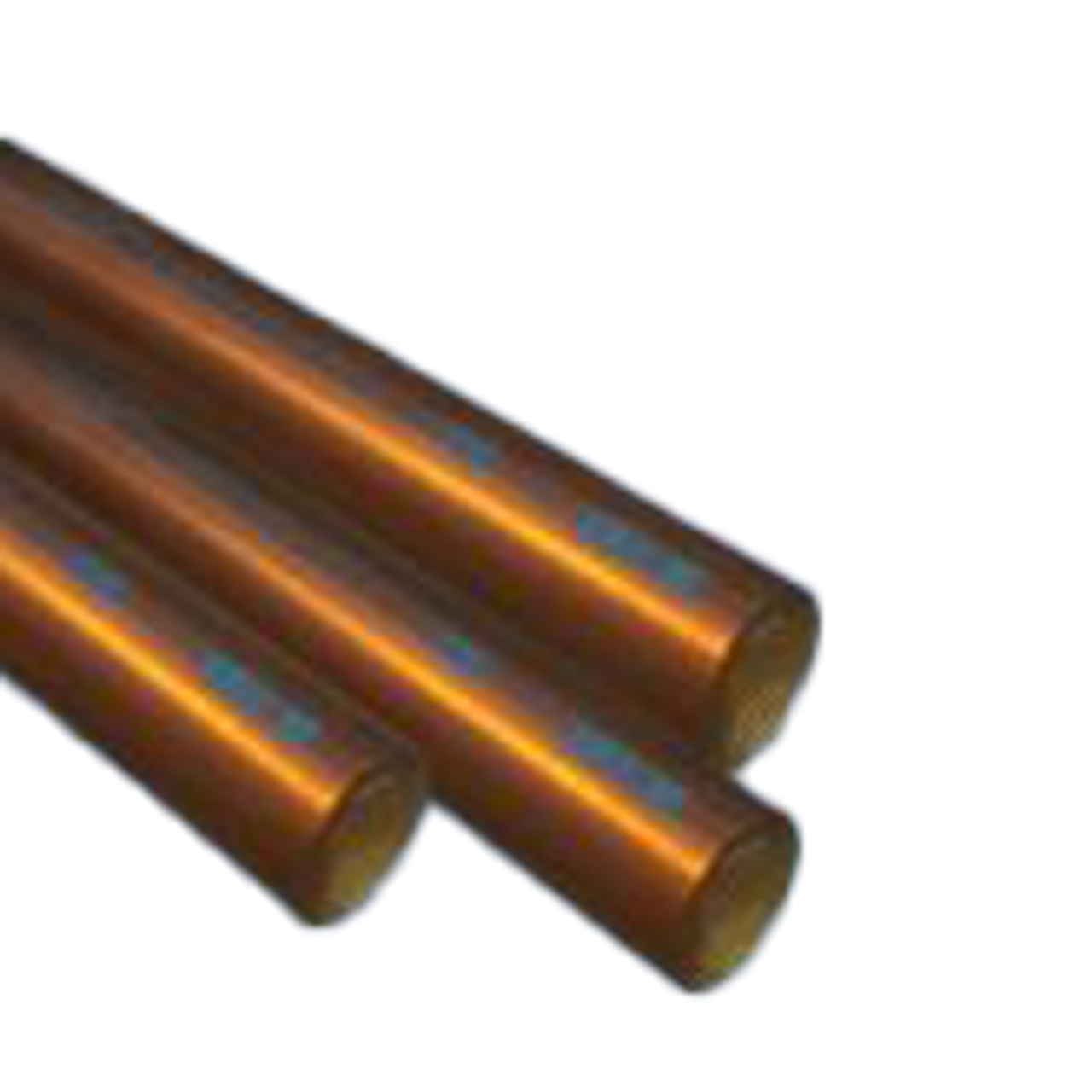

We stock Ultem® stock shapes from the top US plastics extruders including Ensinger, Rochling, and Quadrant EPP. The total length of Ultem® rod vary based on manufacturer from 48, 60, 96 to 120 inches, but all grades are available in lengths up to 120". If you need a shorter length be sure to let us know. We will cut to size.
ULTEM®
| Product Details | Quantity | ||||
|---|---|---|---|---|---|
 | Part No: PLRD01014 Grade: 2300 | Amber | 30% Glass | Rod Length (in.): 120 | Outside Diameter (in.): 1.75 | ||||
| Part No: PLFLR01749 Grade: 2300 | Amber | 30% Glass | Sheet Length (in.): 48 | Width (in.): 24 | Thickness (in.): 0.2 | ||||
| Part No: PLFLR01724 Grade: 1000 | Amber | Unfilled | Sheet Length (in.): 43.5 | Width (in.): 24 | Thickness (in.): 0.75 | ||||
| Part No: PLRD01018 Grade: 2300 | Amber | 30% Glass | Rod Length (in.): 120 | Outside Diameter (in.): 0.875 | ||||
| Part No: PLRD01004 Grade: 1000 | Amber | Unfilled | Rod Length (in.): 120 | Outside Diameter (in.): 0.5 | ||||
| Part No: PLRD00160 Grade: Medical | Black | Unfilled | Rod Length (in.): 120 | Outside Diameter (in.): 0.75 | ||||
| Part No: PLRD00997 Grade: 1000 | Amber | Unfilled | Rod Length (in.): 120 | Outside Diameter (in.): 2 | ||||
| Part No: PLFLR01741 Grade: 1000 | Amber | Unfilled | Sheet Length (in.): 48 | Width (in.): 24 | Thickness (in.): 0.625 | ||||
| Part No: PLRD00176 Grade: Medical | Blue | Unfilled | Rod Length (in.): 120 | Outside Diameter (in.): 2.5 | ||||
| Part No: PLFLR41504 Grade: 1000 | Black | Unfilled | Sheet Length (in.): 48 | Width (in.): 24 | Thickness (in.): 1.54 | ||||
| Part No: PLFLR01721 Grade: 1000 | Amber | Unfilled | Sheet Length (in.): 48 | Width (in.): 24 | Thickness (in.): 0.125 | ||||
| Part No: PLRD36593 Grade: Medical | Light Blue | Unfilled | Rod Length (in.): 120 | Outside Diameter (in.): 1.5 | ||||
| Part No: PLFLR01290 Grade: 1000 | Black | Unfilled | Sheet Length (in.): 48 | Width (in.): 24 | Thickness (in.): 0.625 | ||||
| Part No: PLFLR76281 Grade: 1000 | Amber | Unfilled | Sheet Length (in.): 36 | Width (in.): 24 | Thickness (in.): 2.5 | ||||
| Part No: PLFLR01747 Grade: 2300 | Amber | 30% Glass | Sheet Length (in.): 48 | Width (in.): 24 | Thickness (in.): 0.375 | ||||
| Part No: TBD Grade: 1000 | Amber | 30% Glass | Sheet Length (in.): 41.5 | Width (in.): 25 | Thickness (in.): 0.375 | ||||
| Part No: PLFLR01284 Grade: 1000 | Black | Unfilled | Sheet Length (in.): 48 | Width (in.): 12 | Thickness (in.): 2.04 | ||||
| Part No: TBD Grade: Medical | Grey | Unfilled | Rod Length (in.): 120 | Outside Diameter (in.): 3 | ||||
| Part No: TBD Grade: Medical | Blue | 7.5% Barium | Rod Length (in.): 120 | Outside Diameter (in.): 1.5 | ||||
| Part No: PLFLR01286 Grade: Unfilled | Black | Unfilled | Rod Length (in.): 120 | Outside Diameter (in.): 0.25 | ||||
| Part No: PLFLR01732 Grade: 1000 | Amber | Unfilled | Sheet Length (in.): 48 | Width (in.): 12 | Thickness (in.): 3 | ||||
| Part No: TBD Grade: 1000 | Amber | Unfilled | Sheet Length (in.): 48 | Width (in.): 24 | Thickness (in.): 0.25 | ||||
| Part No: PLRD00993 Grade: 1000 | Amber | Unfilled | Rod Length (in.): 120 | Outside Diameter (in.): 1 | ||||
| Part No: PLFLR01729 Grade: 1000 | Amber | Unfilled | Sheet Length (in.): 48 | Width (in.): 24 | Thickness (in.): 1.75 | ||||
| Part No: PLFLR01735 Grade: 1000 | Amber | Unfilled | Sheet Length (in.): 41.5 | Width (in.): 25 | Thickness (in.): 0.625 |
